V-SERIES (ROTARY VANE TYPE)

Oil Lubricated & Dry Running Rotary Vane Pumps





Elmo Rietschle offers dry running and oil lubricated rotary vane pumps which cover a wide performance range. The eco-friendly dry running rotary vane pumps are used for vacuum, pressure and combined pressure and vacuum applications. The time-tested oil lubricated rotary vane machines are typically used for generating vacuum.





Advantages at a glance:
  • Dry running and oil lubricated versions
  • Low noise level
  • Robust and economical
  • Long up times
  • Easy to operate







Product List

Click for download product's file

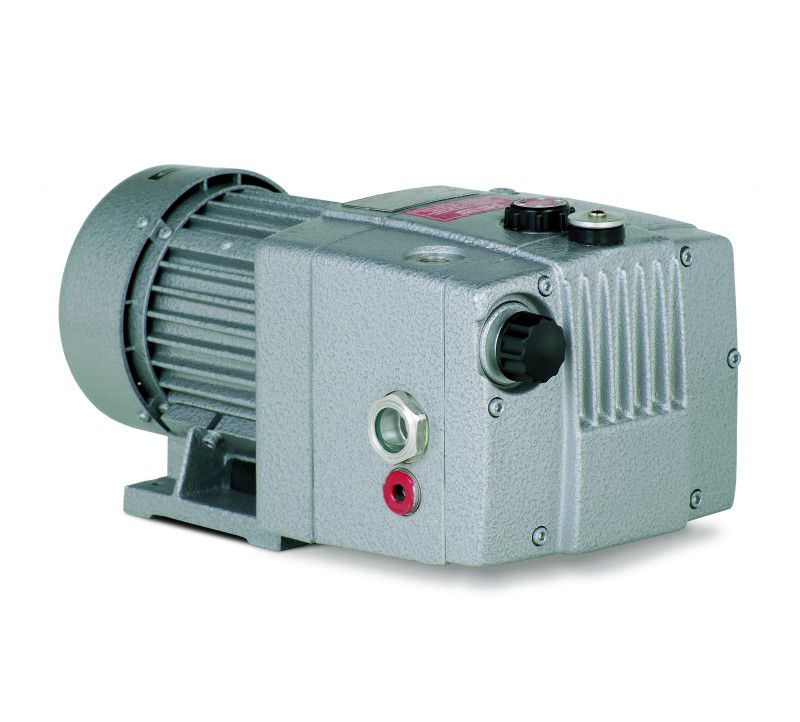

VACUUM PUMPS V-VCA

Volume flow
25 to 48 m³/hr
14.7 to 28.2 cfm


Oil flooded rotary vane vacuum pump with capacities ranging from 25 to 48 m³/hr (14.7 to 28.2 cfm). Ultimate vacuum 0.5 mbar (abs.). Flange motor, bearings on both sides of the rotor, air cooling. Fitted as standard with fine mesh filter, vacuum non-return valve, gas ballast valve and oil separator.


VACUUM PUMPS V-VCE

Volume flow
25 to 48 m³/hr
14.7 to 28.2 cfm

Oil flooded rotary vane vacuum pump with capacities from 25 to 48 m³/hr (14.7 to 28.2). Ultimate vacuum 10 mbar (abs.). Fitted as standard with fine mesh filter, vacuum non-return valve, gas ballast valve and oil separator. Flange motor, air cooling, and bearings on both sides of the rotor.

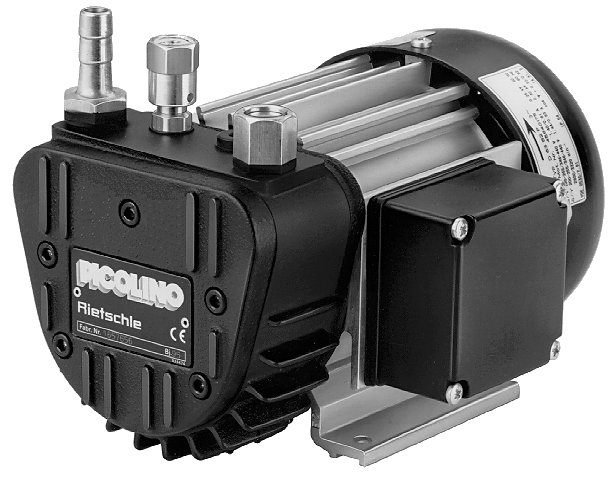

VACUUM PUMPS V-VTE

Volume flow
3.5 to 12 m³/hr
2.1 to 7.1 cfm

Small, dry running rotary vane vacuum pump. Compact design, easy to install. Very low noise level, corrosion-proof rotors. Hose connection and exhaust silencer as standard. Capacities ranging from 3.5 to 12 m³/hr (2.1 to 7.1 cfm). Ultimate vacuum 150 mbar (abs.).




VACUUM PUMPS V-VTN 16, 26, 41

Dry running

Volume flow
17.0 to 50.4 m³/hr
10.0 to 29.6 cfm

Dry running rotary vane vacuum pump with integral suction air filter. Sound cover reduces noise level, enhances cooling and protects operator from touching hot surfaces. Flexible connections possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 17.0 to 50.4 m³/hr (10.0 to 29.6 cfm), ultimate vacuum 150 mbar (abs.).




VACUUM PUMPS V-VTA

Dry running

Volume flow
55 to 92 m³/hr
32.3 to 54.1 cfm

Dry running rotary vane vacuum pump with bearings on both sides of the rotor. Capacities from 55 to 92 m³/hr (32.3 to 54.1 cfm). Ultimate vacuum 150 mbar (abs.). High efficiency and silent operation. Sound cover allows a ducted cooling air outlet either from one side only or from both sides. Easy servicing and operation.




VACUUM PUMPS V-VTR

Dry running rotary vane pump and compressor.
Capacity : 100 to 155 m³/hr( 58.8 to 76.4 cfm)
Ultimate vacuum 150 mbar (abs.)



Dry running rotary vane vacuum pump with bearings on both sides of the rotor. Flange motor with torsionally flexible coupling.

High efficiency and silent operation. Sound cover allows a ducted cooling air outlet.

Easy servicing and operation.


VACUUM PUMPS V-VGD

Oil lubricated

Volume flow
10 to 18 m³/hr
5.9 to 10.6 cfm

Oil flooded rotary vane vacuum pump with capacities from 10 to 18 m³/hr (5.9 to 10.6 cfm). The ultimate vacuum can be selected by operator at either 2 mbar (abs.) for fine vacuum or 10 mbar (abs.) for coarse vacuum. Needs little space thanks to overhung rotor design and integral motor. Fitted as standard with fine mesh filter, vacuum non-return valve and oil separator. Very quiet operation.




VACUUM PUMPS V-VLV

Fresh oil lubricated

Volume flow
27 to 120 m³/hr
15.9 to 70.6 cfm

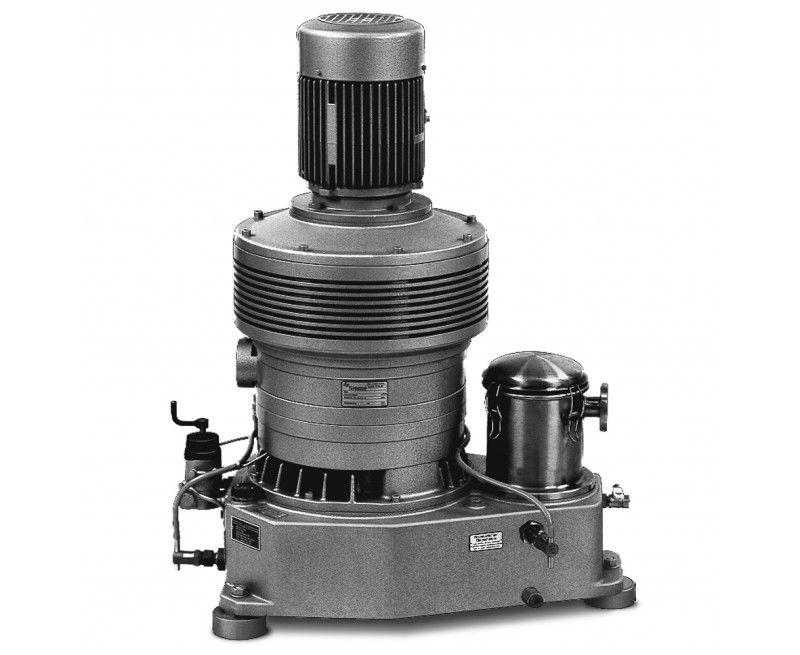

Two stage rotary vane vacuum pump in vertical design. Capacities ranging from 27 to 120 m³/hr (15.9 to 70.6 cfm). Ultimate vacuum 0.5 mbar (abs.). The fresh oil lubrication protects the pump chamber from corrosive vapours. Can be used in combination with a Rotary lobe vacuum pump.




VACUUM PUMPS V-VC

Oil lubricated

Volume flow
50 to 1,535 m³/hr
29.4 to 902.9 cfm

Oil flooded rotary vane vacuum pump with capacities ranging from 50 to 1,535 m³/hr (29.4 to 902.9 cfm) and an ultimate vacuum of 0.1 mbar abs. Flange motor, bearings on both sides of the rotor, oil/air heat exchanger are serial. The sizes of 150 m³/hr and bigger are equipped with fine mesh filter, vacuum non-return valve, gas ballast valve, protection cover and oil separator as standard.




VACUUM PUMPS V-VCB

Oil lubricated
Volume flow
20 to 26.5 m³/hr
11.8 to 15.6 cfm

Oil flooded rotary vane vacuum pump with capacities ranging from 20 to 26.5 m³/hr (11.8 to 15.6 cfm) and an ultimate vacuum of 2 mbar (abs.). Designed especially for installation into small vacuum packaging machines. Flange motor, bearings on both sides of the rotor, air cooling. Fitted as standard with fine mesh filter, vacuum non-return valve and oil separator.





VACUUM PUMPS V-VWZ (13), V-VWZ (14)

Fresh oil lubricated

Volume flow
100 to 1,440 m³/hr
58.8 to 847.1 cfm

VWZ (13)

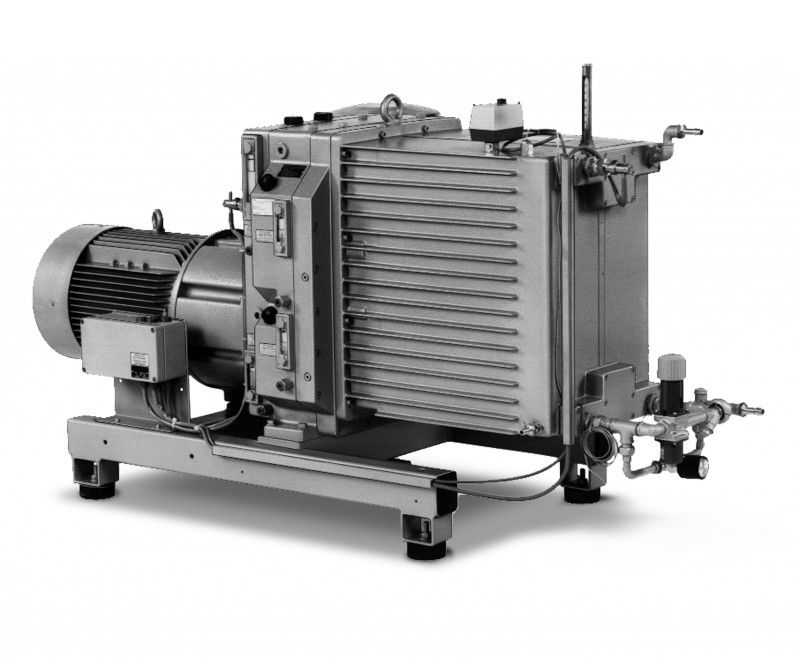

Vacuum pump with circulation cooling: Two stage rotary vane vacuum pump with internal water cooling. Capacities ranging from 100 to 1,440 m³/hr (58.8 to 847.1 cfm), ultimate vacuum 0.5 mbar abs. Thanks to fresh oil lubrication suitable for handling aggressive gases. Easy stage exchange due to modular design. Operating temperature thermostat and integrated cooling water regulation valve. Large range of accessories.

VWZ (14)
Two stage rotary vane vacuum pump with internal water cooling. Capacities ranging from 100 to 1,440 m³/hr (58.8 to 847.1 cfm) ultimate vacuum 0.5 mbar (abs.). Due to fresh oil lubrication suitable for handling aggressive gases. Easy stage exchange due to modular design. Operating temperature thermostat and integrated cooling water regulation valve. Large range of accessories.




Vacuum pumps V-VGA, V-VGC

Oil lubricated

Volume flow
4 to 7.2 m³/hr
2.4 to 4.2 cfm

V-VGA
Small oil flooded rotary vane vacuum pump with capacities ranging from 4 to 7.2 m³/hr (2.4 to 4.2 cfm). Ultimate vacuum 20 mbar (abs.). Needs little space thanks to overhung rotor design and integral motor. Air cooled, low noise level.

V-VGC
 Oil flooded rotary vane vacuum pump with capacities from 4 to 7.2 m³/hr (2.4 to 4.2 cfm). Ultimate vacuum 2 mbar (abs.). Needs little space thanks to overhung rotor design and integral motor. Air cooling, low temperature level, quiet running.




Vacuum pumps V-VL, V-VLB

Fresh oil lubricated

Volume flow
10 to 120 m³/hr
5.9 to 70.6 cfm

V-VL
Fresh oil lubricated rotary vane vacuum pump with capacities ranging from 10 to 120 m³/hr (5.9 to 70.6 cfm) and an ultimate vacuum of 30 mbar abs. Bearings on both sides of the rotor. Shaft sealing for bearing protection from corrosive vapours, air cooling, low temperature level.

V-VLB
 Fresh oil lubricated rotary vane vacuum pump with capacities ranging from 10 to 120 m³/hr (5.9 to 70.6) and an ultimate vacuum of 30 mbar (abs.). Fitted as standard with waste oil and condensate tank. Bearings on both sides of the rotor. Shaft sealing for bearing protection from corrosive vapours, air cooling, low temperature level.




COMPRESSORS V-DTA

Dry running

Volume flow
58 to 88 m³/hr
34.1 to 51.7 cfm

Dry running rotary vane compressors with bearings on both sides of the rotor. Capacities ranging from 58 to 88 m³/hr (34.1 to 51.7 cfm). Pressure up to 1.5 bar for continuous operation and up to 2.2 bar for intermittent operation. High efficiency and silent operation. Sound cover allows a ducted cooling air outlet either from one side only or from both sides. Easy servicing and operation.




COMPRESSORS V-DTE

Dry running

Volume flow
3.5 to 12 m³/hr
2.1 to 7.1 cfm

Small, dry running rotary vane compressors. Compact design, easy to install. Very low noise level, corrosion-proof rotors. Hose connector, inlet silencer and pressure relief valve fitted as standard. Capacities from 3.5 to 12 m³/hr (2.1 to 7.1 cfm), pressure up to 1 bar.




COMPRESSORS V-DTN 16, 26, 41

Dry running

Volume flow
17.0 to 52.2 m³/hr
10.0 to 30.7 cfm

Dry running rotary vane compressor with integral suction air filter. Sound cover reduces noise level, enhances intensive cooling and protects operator from touching hot surfaces. Flexible connections possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 17.0 to 52.2 m³/hr (10.0 to 30.7), pressure up to 1 bar. Can be fitted with a compressed air after-cooler if required.




COMPRESSORS V-DTR

Dry running

Volume flow
100 to 153 m³/hr
58.8 to 90 cfm

Dry running rotary vane compressor with bearings on both sides of the rotor. Flange motor with torsionally flexible coupling. Capacities from 100 to 153 m³/h (58.8 to 90cfm). Pressure up to 1.5 bar for continuous operation and up to 2.2 bar for intermittent operation. High efficiency and silent operation. Sound cover allows a ducted cooling air outlet. Easy servicing and operation.




PRESSURE - VACUUM PUMPS V-KTA

Volume flow
55 to 90 m³/hr
32.3 to 52.9 cfm

Dry running rotary vane pressure vacuum pumps with bearings on both sides of the rotor. Capacities from 55 to 90 m³/hr (32.3 to 52.9 cfm). Vacuum up to - 0.6 bar and pressure up to + 0.7 bar. Flexibility to alter vacuum and compressed air capacities to suit individual applications:
•    Version /1: standard vacuum and pressure capacity.
•    Version /2: maximum compressed air capacity.
•    Version /3: maximum vacuum capacity

High efficiency and silent operation. Sound cover allows a ducted cooling air outlet either from one side only or from both sides. Easy servicing and operation.




PRESSURE - VACUUM PUMPS V-KTN 16, 26, 41

Volume flow
15.7 to 51.0 m³/hr
9.2 to 30.0 cfm

Integral suction and air blast filters. Sound cover reduces noise level, enhances intensive cooling and protects operator from touching hot surfaces. Flexible connection possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 15.7 to 51 m³/hr (9.2 to 30.0 cfm). Pressure/vacuum up to ± 0.6 bar. With compressed air after-cooler.




PRESSURE - VACUUM PUMPS V-KTR

Volume flow
100 to 160 m³/hr
58.8 to 94.1 cfm

Dry running rotary vane pressure vacuum pumps with bearings on both sides of the rotor. Flange motor with torsionally flexible coupling. Capacities from 100 to 160 m³/hr (58.8 to 94.1 cfm), vacuum up to - 0.6 bar and pressure up to + 0.6 bar. High efficiency and silent operation. Sound cover allows a ducted cooling air outlet. Easy servicing and operation.
